Refill film cartridge for Pentax Auto 110 & Rollei A110

• Independent of the film market: Instead of expensive or sold-out ready-made films, you load your cassettes yourself with 16mm film and reduce costs to under 3 euros per roll.
• Load any emulsion yourself: Cut 35mm or 120 roll film (e.g., Kodak Portra, Ilford HP5+) down to 16mm or use native 16mm cine film directly.
• Crease-free loading thanks to take-up spool: The included spool guides the film tightly into the feed chamber, preventing loss of the film end.
• ISO notch for exposure: In the delivered state, the camera recognizes normal film; after breaking off the designated break point, it switches to high-speed film ISO 400.

Compatibility

The cassette fits mechanically into any 110 pocket camera. The key factor is whether you use perforated or unperforated film: with unperforated film (e.g., bulk film from a film cutter), camera systems react differently to the missing perforation holes.

• Systems with shutter-only release: The camera fires without issues (e.g., Minox 110S, Canon 110ED). Suitable for unperforated film.
• Limited systems (Pentax Auto 110): The shutter fires without perforation. However, the film transport stop mechanism requires a perforation hole to stop precisely. Without perforation, images on the negative partially overlap.
• Problem systems (Rollei A110 / E110): These cameras advance film with every push-pull movement. Without perforation, no mechanism locks in place, causing you to lose a lot of film area when closing the housing.

Cameras with film transport gear (e.g., Agfamatic): see section "Film transport stop edge" below.

Contents per variant

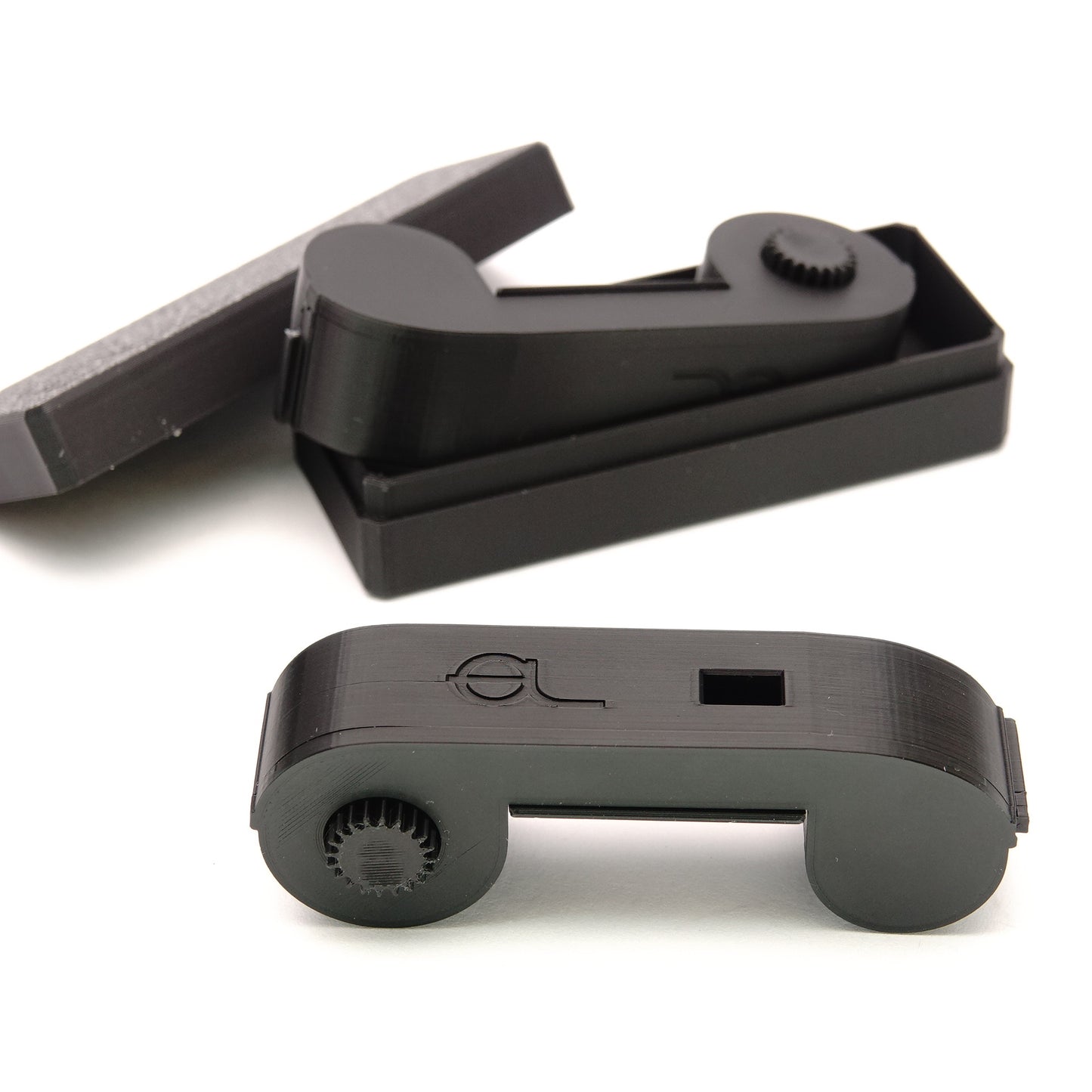

Set: both cassettes, spools + case
Includes all components.

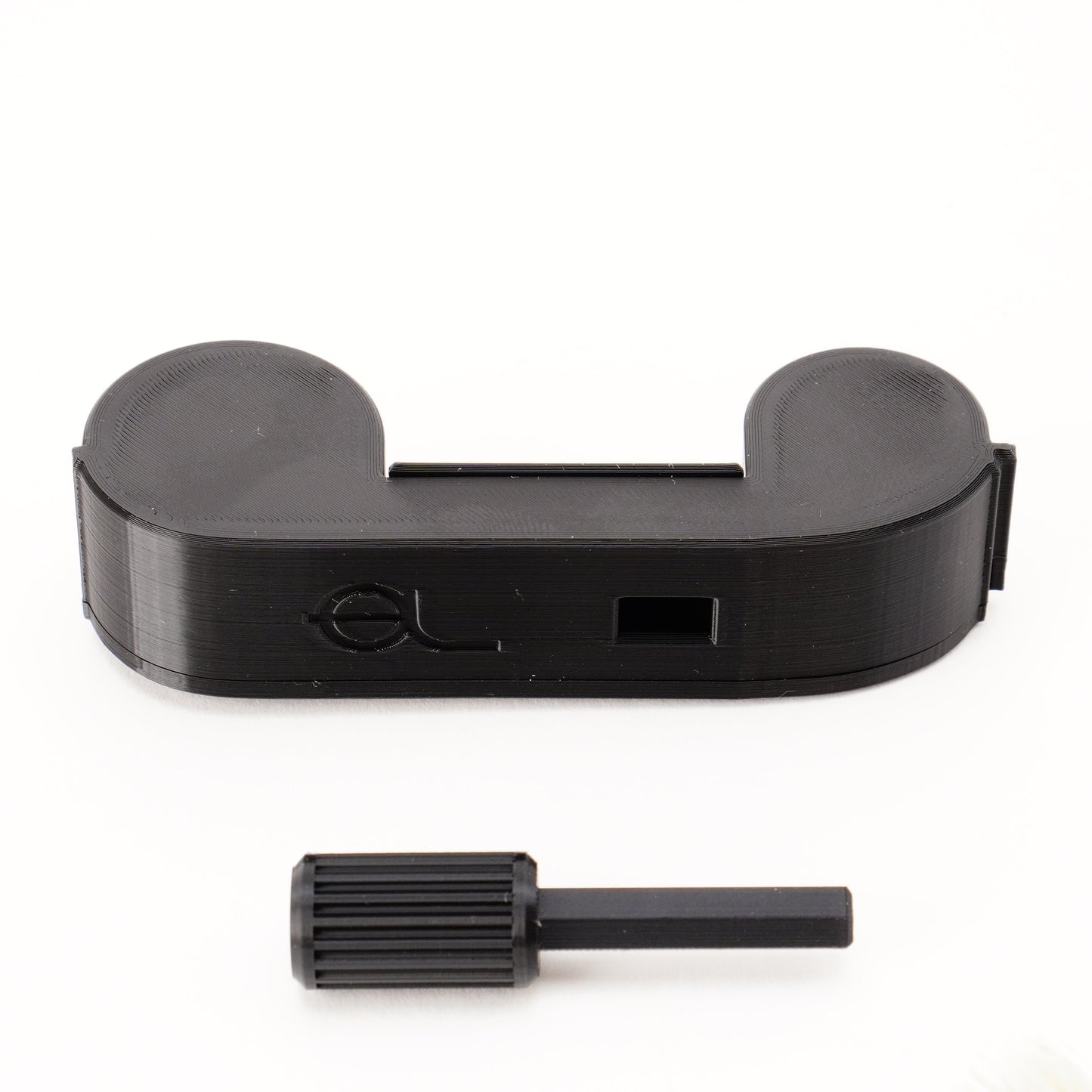

• 1x film cassette with window (visible frame number, protection against housing abrasion — for film with backing paper from 120)
• 1x film cassette without window (faster to load in the dark, for film without backing paper from 35mm)
• 2x cassette cover
• 2x take-up spool
• 2x supply spool
• 2x light seal
• 1x protective case for transport

Basic: film with backing paper (from 120)

• 1x film cassette with window (for film with backing paper)
• 1x cassette cover
• 1x take-up spool
• 1x supply spool
• 1x light seal

Double pack: 2x film with backing paper (120)

• 2x film cassette with window (for film with backing paper)
• 2x cassette cover
• 2x take-up spool
• 2x supply spool
• 2x light seal

Basic: film without backing paper (from 35mm)

• 1x film cassette without window (for film without backing paper)
• 1x cassette cover
• 1x take-up spool
• 1x supply spool
• 1x light seal

Double pack: 2x film without backing paper (35mm)

• 2x film cassette without window (for film without backing paper)
• 2x cassette cover
• 2x take-up spool
• 2x supply spool
• 2x light seal

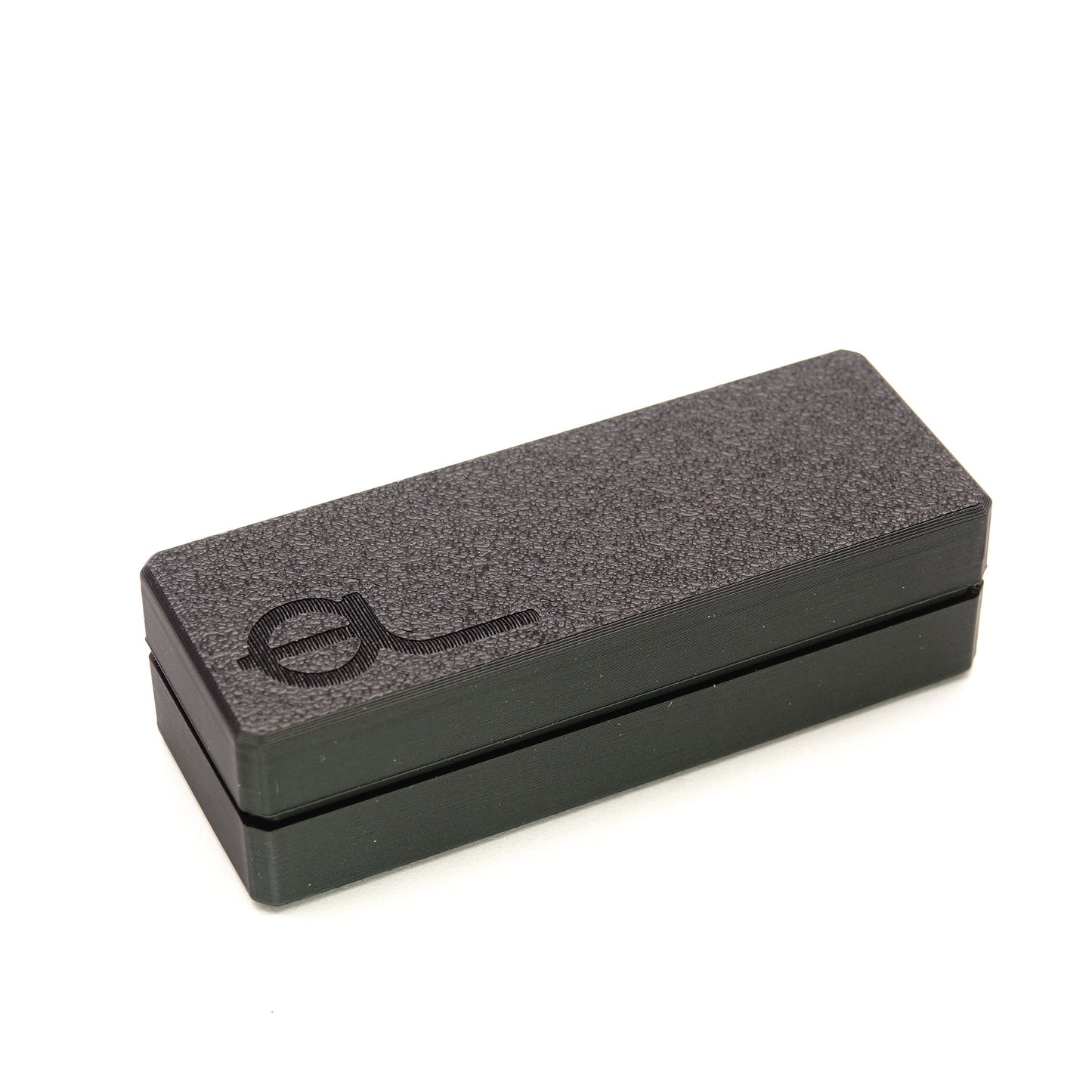

Case for empty cassette

1x protective case for transporting a loaded or empty 110 cassette

Technical details

• Material: technical plastic
• Format: 110 Pocketfilm (for native 16mm film, cut 35mm, or 120 roll film)
• ISO control: notch present (ISO 64–100) — notch removable (ISO 400)
• Compatibility control: lower break edge removable for sprocket cameras

Description

Anyone looking for film for their Pentax Auto 110 or Rollei A110 faces the same problem: 110 films are hardly available and expensive. With this refillable film cassette, you can load any emulsion yourself instead. You cut 35mm or 120 roll film down to 16mm or use 16mm movie film directly and are no longer dependent on the limited ready-made material on the market.

You adjust the cassette to your camera and film sensitivity via the ISO notch and the lower break point. The version with a window shows you the frame number and protects against housing friction, the version without a window can be loaded faster in the dark.

How to load it correctly

Tightly wind your cut film onto the small take-up spool and slide it compactly into the left feed chamber of the cassette. The spool forces the film into the correct position and prevents it from unwinding again when closing the cassette.

Set ISO and exposure

110 cameras control exposure via the standardized ISO notch on the cassette. In the delivery state, the camera recognizes normal film (typically ISO 64–100, depending on the camera manufacturer). If you break off the flat edge at the break point, the camera switches to fast film (ISO 400). This calibrates the light meter to the actual sensitivity of the loaded emulsion.

Film transport break edge

Some 110 cameras (like Agfamatic) have a film transport gear (sprocket) on the bottom that engages with a gap in the original cassette. If this plastic edge is present, the gear can block. If you break off this lower break point, the gear has enough space — the cassette works flawlessly.

Practical tip: Recognize the end of the film without a window

Missing the window for the frame counter on the closed cassette? Fold the very last end of the film double and insert a tiny piece of a cocktail stick into the fold. The thickening can no longer leave the feed chamber — if the transport blocks, you know the roll is full.

Part of the 110 Pocket Film System

This product is part of our complete 110 ecosystem: cutting film, loading cassettes, developing, and scanning, all from one source. You can find an overview of all products in the system overview, and how the entire process works is shown in our guide to getting started with the 110 game.
