- Only dedicated Minox scanning solution: 9,2mm film channel, designed exactly for 8×11mm subminiature film, no adapter, no workaround.
- Film strip held flat: the dual-S curve keeps the strip flat across its full width, no glass plates, no Newton rings, sharp into the corners.
- Magnetic Top Plate, one motion: lift off, insert film, click into place. Even short film snippets and single frames fit without threading.
- Modular expansion against stray light: The layer system grows with you: Adapter Plate at the bottom and lens hood at the top (from the “With light source” variant onwards) completely seal off side light and preserve contrast.
You’ll also need:
- Digital camera with a macro lens
- Copy stand or tripod with a tilting center column (for “Film holder” and “With light source”)
- Light source (for “Film holder”)
- Tripod head for the copy stand, such as the one from your tripod (for “With copy stand”; “Everything but camera and lens” comes with the leveling base for this)
Compatibility
Compatibility
Film:
All Minox 8×11mm subminiature film negatives
Light sources (universally compatible):
- CineStill CS-LITE / CS-LITE+ (SpectraColor), the CS-LITE is included in the “With light source” variant and above
- Negative Supply Light Source (Basic/MK1/Pro)
- Kaiser Slimlite Plano
- Raleno LED panel (e.g. PLV-S116)
- Jack Scanlight
- Any light surface ≥ 52 × 120mm (= footprint of the Minox Base Plate)
Accessories (Ausgeknipst ecosystem):
- Copy Stand MK2 (1602b), included in the “With copy stand” variant and above
- Lens hood Mini (1661p), included from the “With light source” variant onwards
- CSL Adapter Mini (1664p), included in the “With light source” variant and above
What's included
What's included
All variants include the Minox film holder: Base Plate and magnetic Top Plate. “With light source” adds the CineStill CS-LITE light source, the CSL Adapter Plate and the lens hood. “With copy stand” additionally includes the Copy Stand MK2 for a complete scanning station. “Everything but camera and lens” also includes the leveling base, which replaces the tripod head.
“Film holder” variant:
| # | Component | SKU |
|---|---|---|
| 1 | Minox Base Plate (with rubber feet, dual S-curve) | 1651b |
| 2 | Minox Top Plate 8×11mm (magnetic) | 1651b |
“With light source” variant:
| # | Component | SKU |
|---|---|---|
| 1 | CineStill CS-LITE light source | 1725v |
| 2 | CSL Adapter Plate Mini | 1664p |
| 3 | Minox Base Plate (with rubber feet, dual S-curve) | 1651b |
| 4 | Minox Top Plate 8×11mm (magnetic) | 1651b |
| 5 | Lens hood mini + spacer | 1661p |
“With copy stand” variant:
| # | Component | SKU |
|---|---|---|
| 1 | Copy Stand MK2 (60cm) | 1602b |
| 2 | CineStill CS-LITE light source | 1725v |
| 3 | CSL Adapter Plate Mini | 1664p |
| 4 | Minox Base Plate (with rubber feet, dual S-curve) | 1651b |
| 5 | Minox Top Plate 8×11mm (magnetic) | 1651b |
| 6 | Lens hood mini + spacer | 1661p |

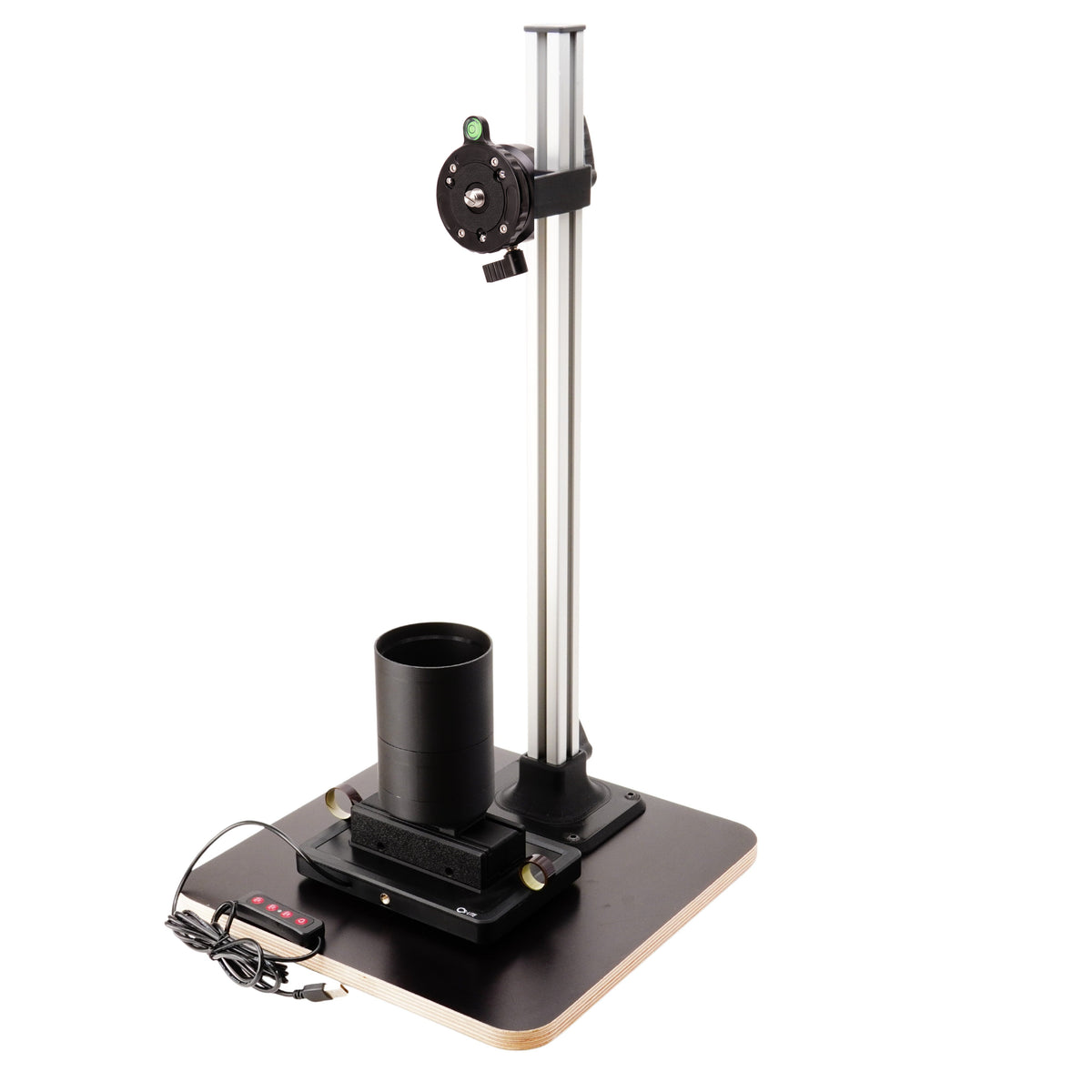

“Everything but camera and lens” variant:
| # | Component | SKU |
|---|---|---|
| 1 | Copy Stand MK2 (60cm) | 1602b |
| 2 | CineStill CS-LITE light source | 1725v |
| 3 | CSL Adapter Plate Mini | 1664p |
| 4 | Minox Base Plate (with rubber feet, dual S-curve) | 1651b |
| 5 | Minox Top Plate 8×11mm (magnetic) | 1651b |
| 6 | Lens hood Mini + spacer | 1661p |
| 7 | Leveling base (with 1/4" to 3/8" adapter screw, hex key and instructions) | 1830 |
You need a tripod head for the Copy Stand
You need a tripod head for the Copy Stand
Applies to the “With copy stand” and “Everything but camera and lens” variants, the other variants don't include a Copy Stand. The Copy Stand has a 3/8" screw on top. A tripod head is not included in any set. The setup is: Copy Stand, tripod head on top, camera on top of that. You use the joint to align the camera exactly parallel to the negative, which is why there's no fixed camera mount on the profile.
Practically any ball head or geared head fits, since 3/8" is the standard on the underside of the head. If you have a tripod, simply unscrew the head and use it here. Without a head of your own, our leveling base fits directly onto the 3/8" screw. If you choose “Everything but camera and lens” above, it comes right in the package.
Technical details
Technical details
- Material: Engineering plastic, matte black, non-reflective
- Film channel: 9.2mm width (Minox)
- Exposure window: 8 × 11mm
- Overall dimensions (Base + Top): 120 × 52 × 29mm (L × W × H)
- Film plane above the base: 13.8mm, 15.3mm above the light surface with the CS-LITE Adapter Module
- Rubber feet: 2mm height, Shore 70A, non-slip, scratch-resistant
- Attachment: 4× neodymium magnets (Top Plate held magnetically)
- Weight Base + Top: approx. 55g
- Film holders: made in Würzburg
- SKU: 2223
Description
Description
Minox film in the 8x11 format gets short shrift in most scanning systems, and a film holder that really fits is hard to find. This system is the only dedicated scanning solution for Minox subminiature film, built from the ground up for Minox shooters: modular, with no compromises on quality and handling, even at this tiny format. The Base Plate guides the 9.2mm wide film through a channel with a dual S curve that keeps the strip flat without glass plates. You remove the magnetic Top Plate with a single motion: load the film, snap it in, scan. The integrated rubber feet (2mm, Shore 70A) provide a non-slip stand on any light source.
The system grows with your workflow: from the film holder alone, through the “With light source” variant (CineStill CS-LITE, Adapter Plate and lens hood), up to the complete scanning station with Copy Stand MK2. We make the film holders ourselves in Würzburg.
Which set is right for you?
Which set is right for you?
Three questions, one recommendation in under 60 seconds: Go to the Film Scanner Finder
The interactive range diagram shows the layer structure of all components with direct shop links: Go to the range diagram
Part of the Minox 8x11 subminiature system
Part of the Minox 8x11 subminiature system
This product is part of our Minox 8x11 ecosystem: cutting film, loading cassettes, developing and scanning, all from a single source.
More on this: Go to the system overview and Go to the Minox 8x11 guide
More guides and technical background on analog photography and film scanning: Go to the blog overview
