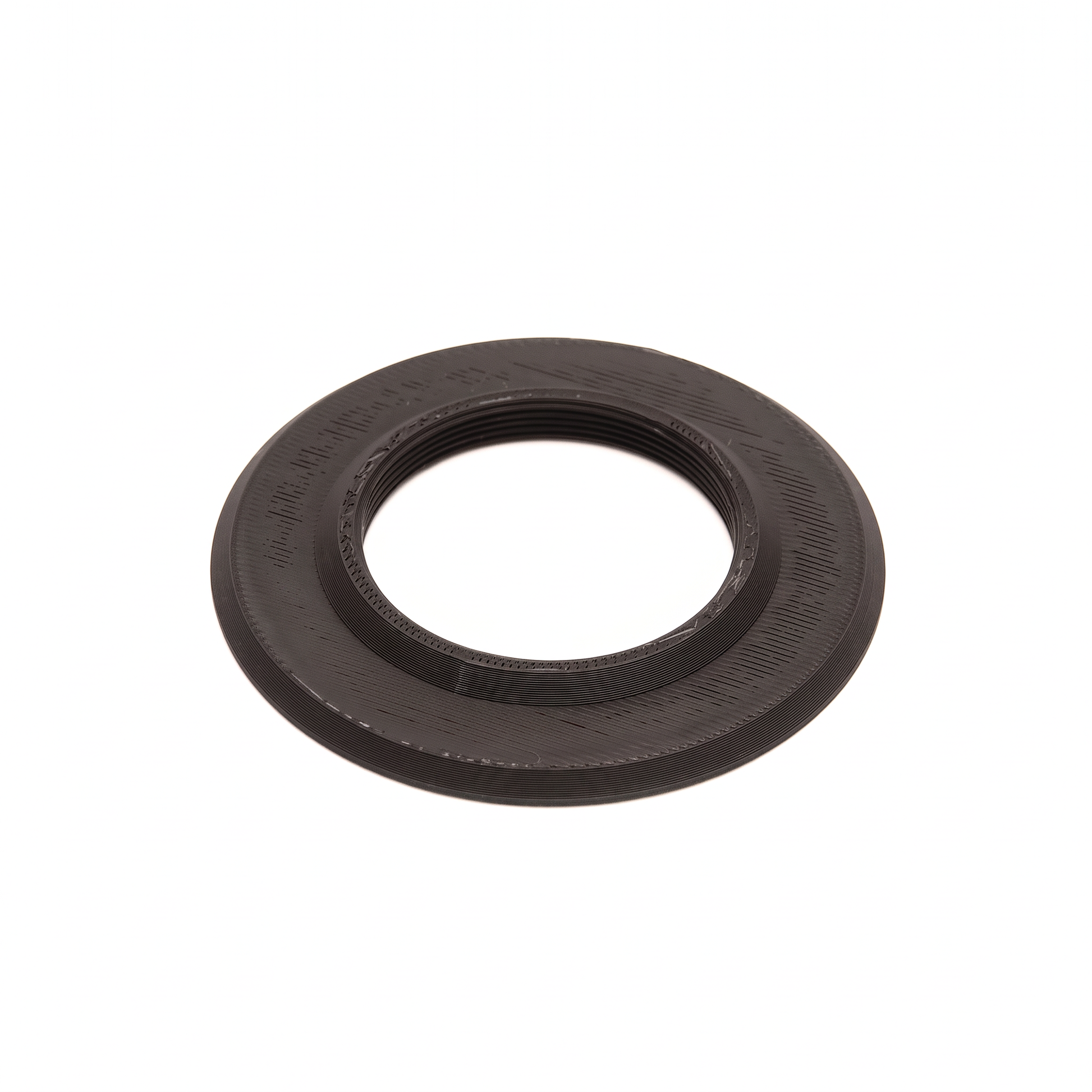

M39 Lens Board for Meopta Axomat 4 & Opemus 3

• Modern M39 lens usable on Meopta: Replacement for the original holder with old M23.5 thread, accepts enlarger lenses with M39 standard thread, such as those from Rodenstock or Schneider.

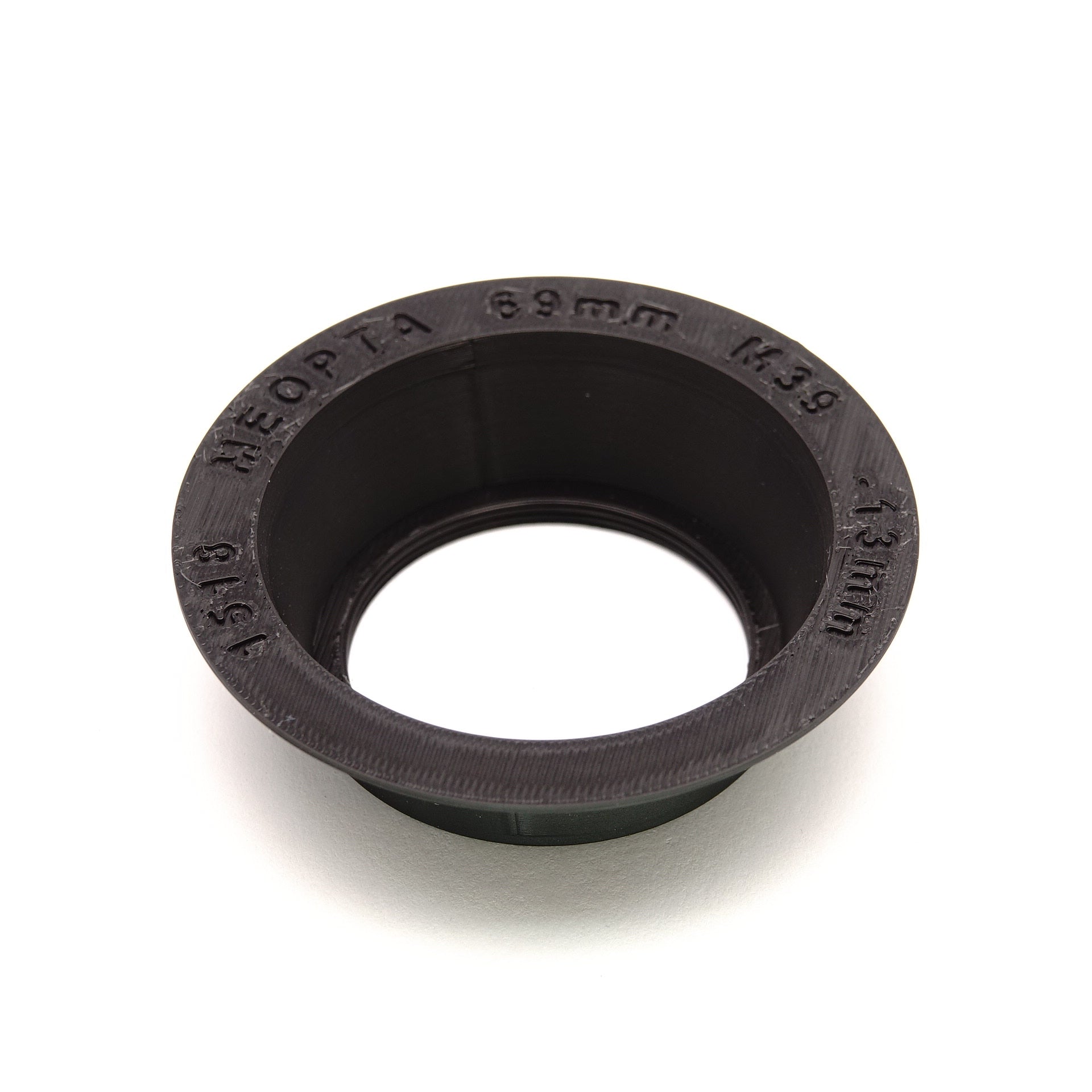

• Recessed version for wide-angle optics: The -13 mm version brings the lens 13 mm closer to the film and allows focusing with short focal lengths (28–40 mm) when the bellows cannot be compressed enough.
• Direct replacement for the original plate: Outer diameter 69 mm, fits the classic Meopta lens mount.

Compatibility

Fits Meopta enlargers with a 69 mm lens mount, including:

• Meopta Axomat 4
• Meopta Opemus 3
• Other models with 69 mm mount (please measure in advance, newer models like Opemus 6 often use 78 mm)

Scope of delivery

• 1x lens plate for Meopta (Ø 69 mm) in the chosen version (flat or recessed)

Technical details

• Material: technical plastic
• Thread: M39 x 1/26" (Leica standard)
• Outer diameter: 69 mm
• Flat version: height 0 mm (for 50 mm+ focal lengths)
• Recessed version: approx. 13 mm recess (for wide-angle 28–40 mm)

Description

For the Meopta Axomat 4 and other older Meopta enlargers with 69 mm mount, this lens plate replaces the original M23.5 holder with a modern M39 thread. Those switching to modern lenses with M39 mount replace the original holder with this plate and continue to use their existing glass.

There are two versions. The flat standard plate fits classic 35mm enlarging with 50 mm lenses. The recessed plate (-13 mm) is designed for wide-angle lenses: with short focal lengths, the distance between lens and negative must be very small, and the recess helps achieve the focus point without the enlarger bellows being limited.
