Film Scanner Set for 35mm Sprocket

Universal 35mm system for digitizing with any DSLR or mirrorless camera.

Film:

• All 35mm negatives (color and black and white)
• Film strips and individual frames

For 35mm only: There is no equivalent for 120 medium format, and none is planned. With wider roll film, the edge is the area where the holder guides the strip; a window covering the full width would remove this guidance and allow the film to sag. For medium format, getting flatness right to the edges requires two glasses with an anti-Newton coating.

Light sources (universally compatible):

• CineStill CS-LITE / CS-LITE+ (SpectraColor), the CS-LITE is included in the “With Light Source” variant and above
• Negative Supply Light Source (Basic/MK1/MK2/Pro)
• Kaiser Slimlite Plano
• Raleno LED panel (e.g. PLV-S116)
• Jack Scanlight
• Any illuminated surface ≥ 73.2 × 120mm (= footprint of the 35mm Base Plate; smaller surfaces are also possible with limitations, in which case the Plate extends beyond the light)

Accessories (Ausgeknipst ecosystem):

• Copy Stand, included in the “With Copy Stand” variant and above
• Expandable with: Half Frame Top, Panorama X-Pan Top
• 35 lens hood with spacers, included in the “With Light Source” variant and above
• CSL Adapter 35 for CineStill Lite, included in the “With Light Source” variant and above

“Film Holder” variant:

“With Light Source” variant:

“With Copy Stand” variant:

“Everything except camera and lens” variant:

This applies to the “With Copy Stand” and “Everything except camera and lens” variants; the other variants do not include a Copy Stand. The Copy Stand has a 3/8" screw on top. A tripod head is not included in any set. The setup is: Copy Stand, tripod head on top, camera on top of that. The joint lets you align the camera exactly parallel to the negative, which is why the profile does not have a fixed camera mount.

Practically any ball or geared head will fit, since 3/8" is the standard on the underside of the head. If you have a tripod, simply unscrew the head and use it here. If you do not have your own head, our leveling base attaches directly to the 3/8" screw. If you choose “Everything except camera and lens” above, it comes right in the package.

• Material: Engineering plastic, matte black, non-reflective
• Film channel: 35mm wide
• Exposure window: 31 × 40mm (Sprocket Top Plate. The perforation is included in the image, the outer edge strip with the frame numbers is not), with the other Top Plates also 24 × 36mm, 18 × 24mm Half Frame, or 24 × 65mm Panorama
• Overall dimensions (Base + Top): 120 × 73 × 32mm (L × W × H)
• Film plane above the stand surface: 15.7mm, with the CS-LITE Adapter Module 17.2mm above the illuminated surface
• Rubber feet: 2mm high, Shore 70A, non-slip, scratch-resistant
• Fastening: 4× neodymium magnets (Top Plate held magnetically in place)
• Film guidance: contact-free through the image area
• Weight Base + Top: approx. 85g
• Film holder manufacturing: Würzburg
• SKU: 1655

With this modular film holder for 35mm, you can digitize your 35mm negatives, including the perforation (sprocket holes), with a DSLR or mirrorless camera. The Base Plate guides the film through a channel with a Dual-S curve that keeps the strip flat across its entire width. The film is touched only at the two edges, leaving the image area clear. In normal operation, you feed the strip into the channel from the side, advance it frame by frame, and pull it out on the other side. The magnetic Top Plate stays in place. You only need to lift it for short snippets that cannot be fed through and when changing formats: the Top Plate is the mask.

Compared with a solution that uses only a Sprocket Top on a standard base, this set guides the film across the entire perforation width for standard 35mm scans, not just at the edges. This keeps the film evenly flat in both scan modes: with and without visible perforation.

With the Sprocket Top Plate, your scan shows the entire image and the perforation on both sides. The outermost edge strip with frame numbers and film name (around 2 mm per side) is covered by the holder, because that is exactly where it guides the film to keep it flat.

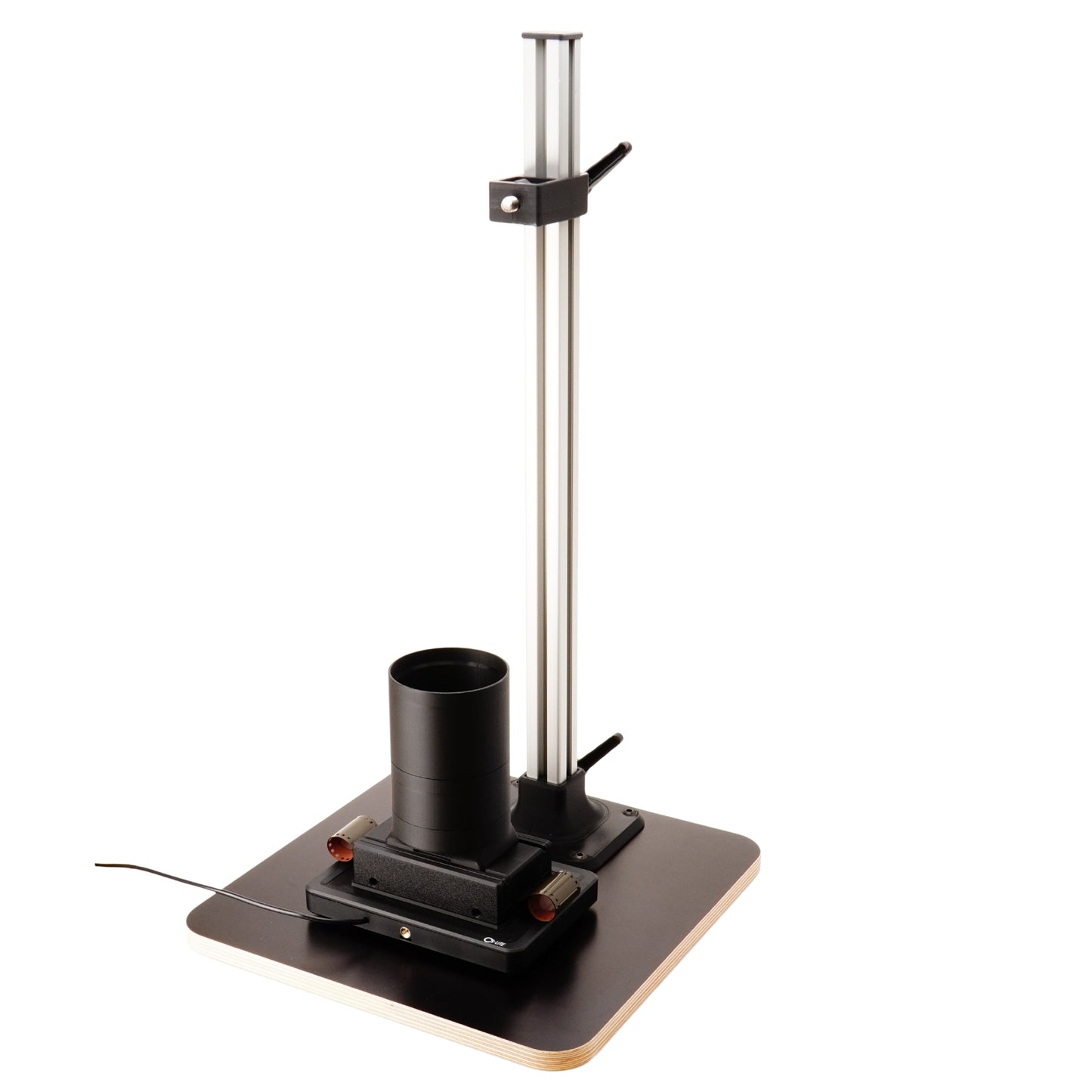

The system grows with your workflow: from the plain film holder with Sprocket and Standard Top Plate, through the “With Light Source” variant (CineStill CS-LITE, Adapter Plate, and lens hood), to the complete scanning station with Copy Stand. Additional Top Plates for Half Frame and Panorama X-Pan are available separately.

Not sure which set you need? The Film Scanner Finder gives you a recommendation after three questions. You can find the complete layer structure of all components with direct shop links in the interactive product range diagram. Guides and technical background on film scanning are available in the blog overview.
