Top plate module for film holder 120 (6x4.5, 6x7 & 6x9)

Important: This is only the individual Top Plate (format mask). It can only be used in combination with the matching Base Plate from the main set.

Not sure which set you need? Go to the Film Scanner Finder: 3 questions, personalized recommendation in under 60 seconds

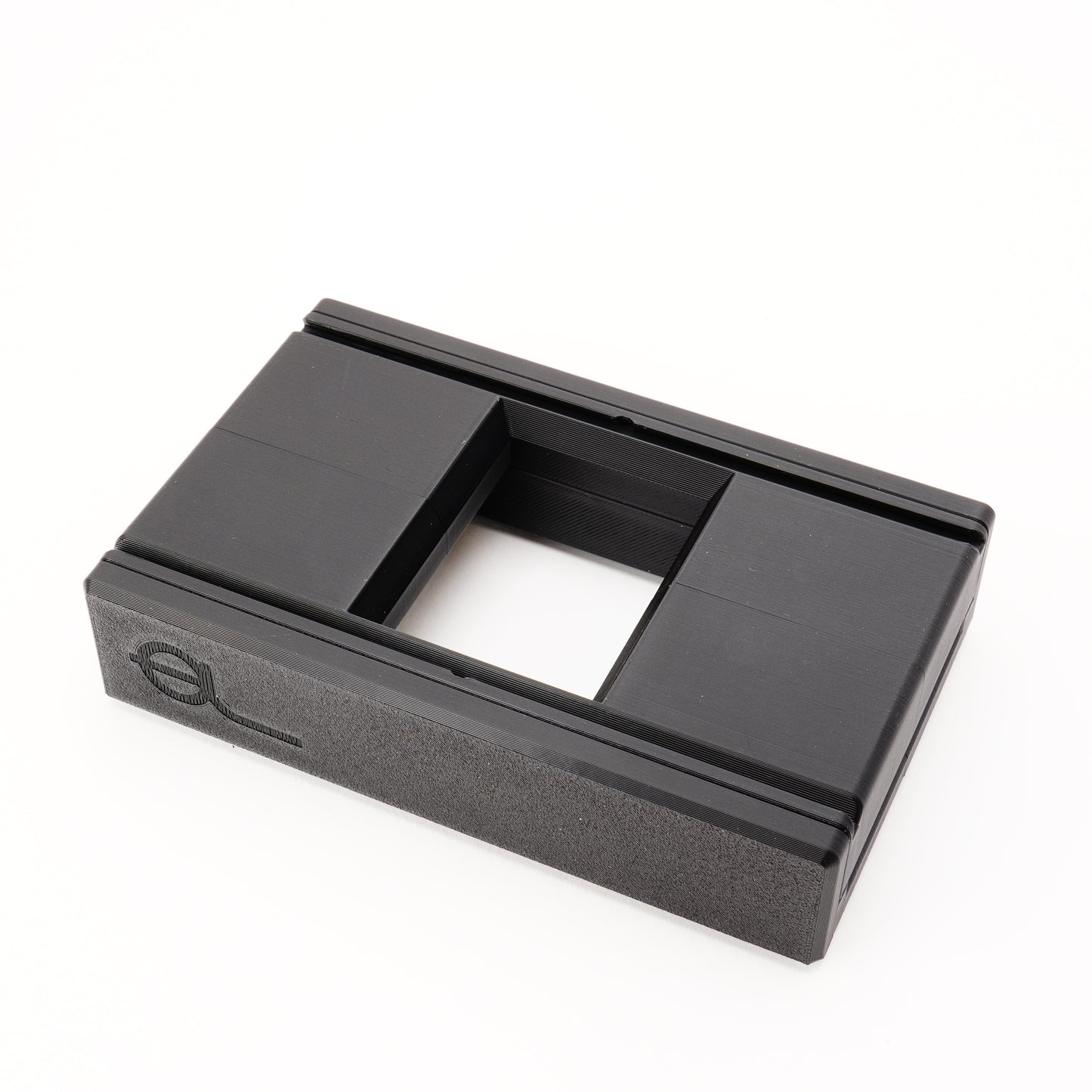

• Accessory for your Film Scanner Set 120. This offer includes only the Top Plate. You need a 120 Base Plate from our Film Scanner Set 120 as the foundation. Simply attach it magnetically and switch film formats.

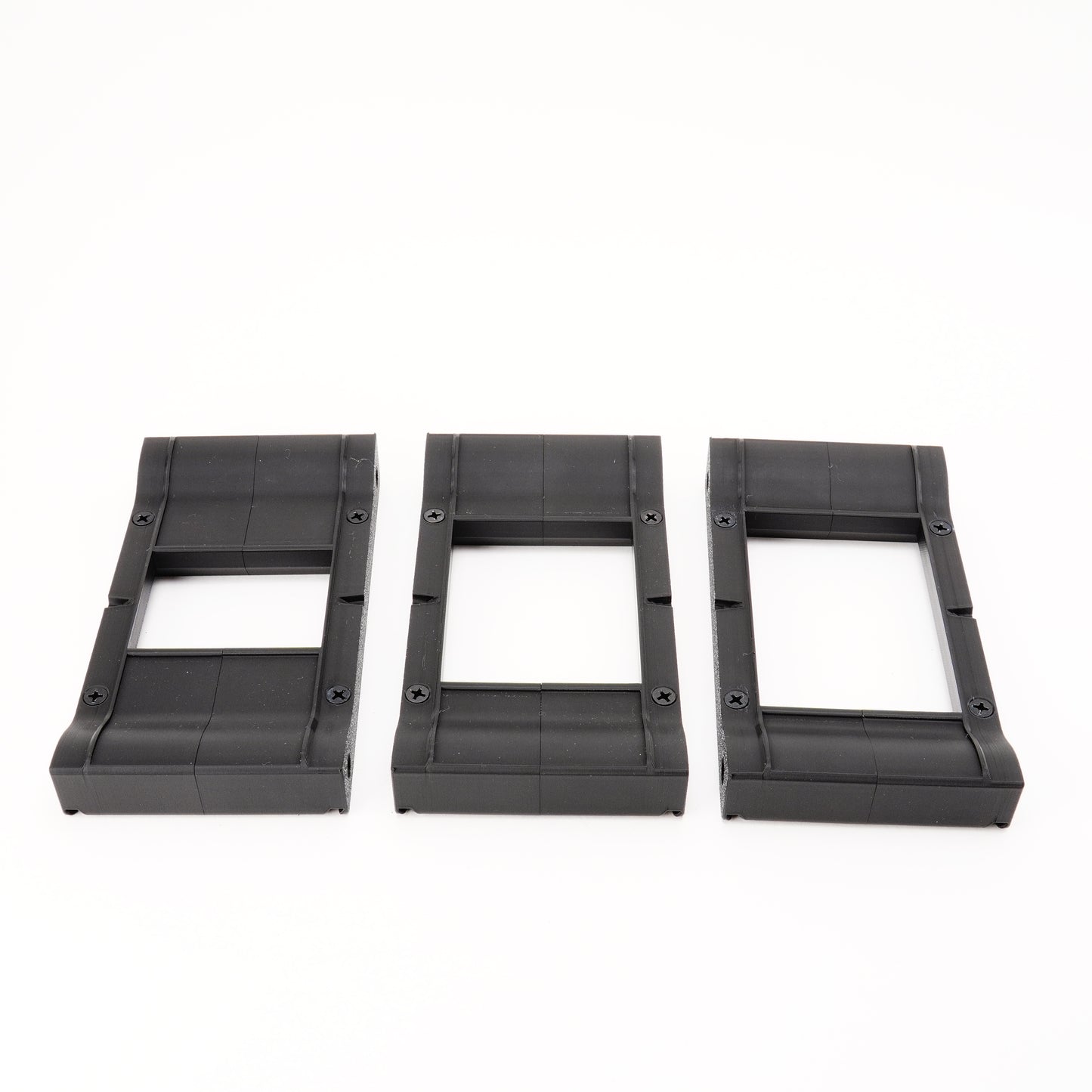

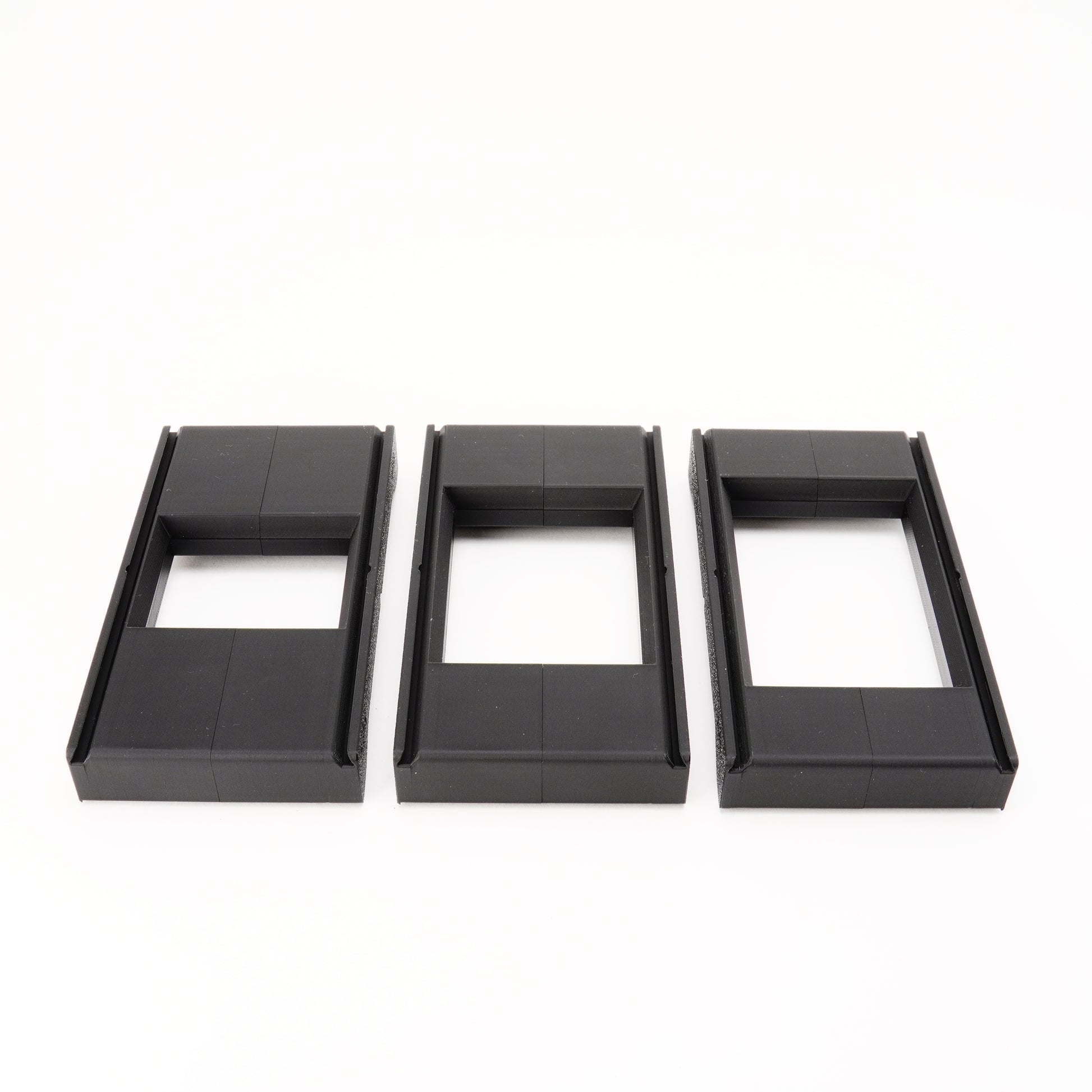

• Three formats, one base. 6×4.5 (56×42mm), 6×7 (56×70mm), 6×9 (56×84mm)—choose the format that matches your camera. All fit the same 120 Base Plate.
• Quick to change: Lift off magnetically and attach the new Top Plate: switch in under 2 seconds.



Scope of delivery

1× Top Plate in the selected format (magnetic, 4× neodymium magnets) or all three in the discounted set

Technical specifications

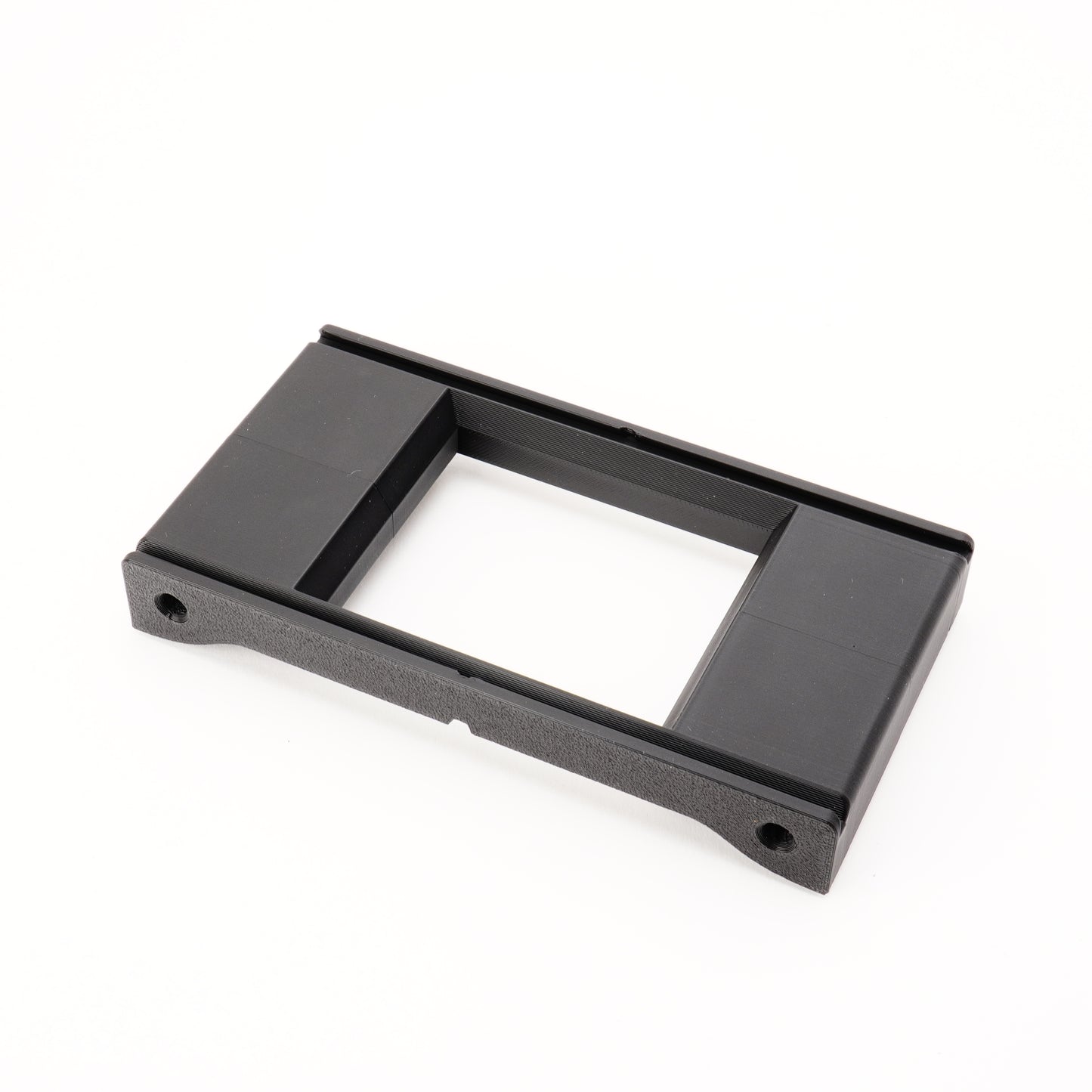

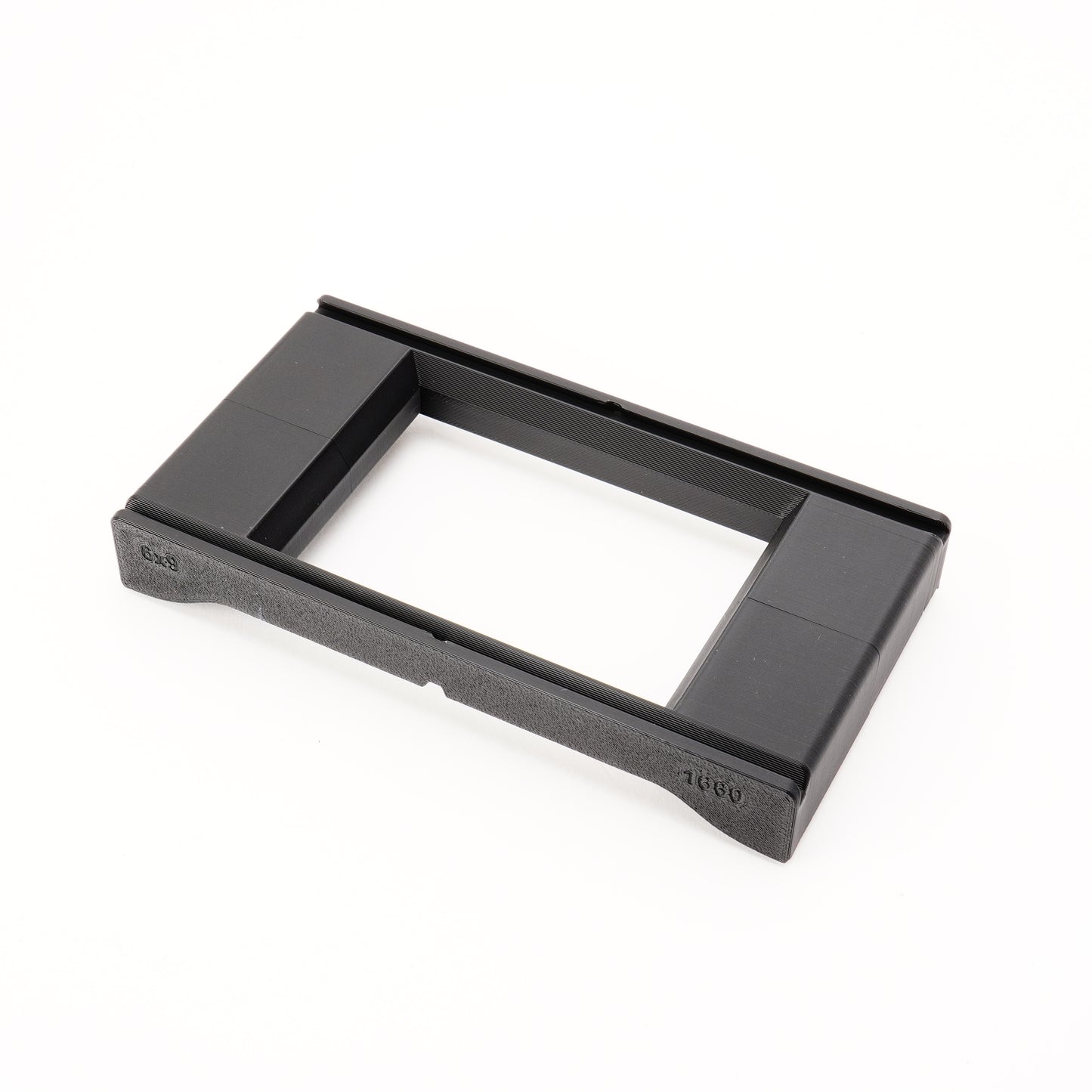

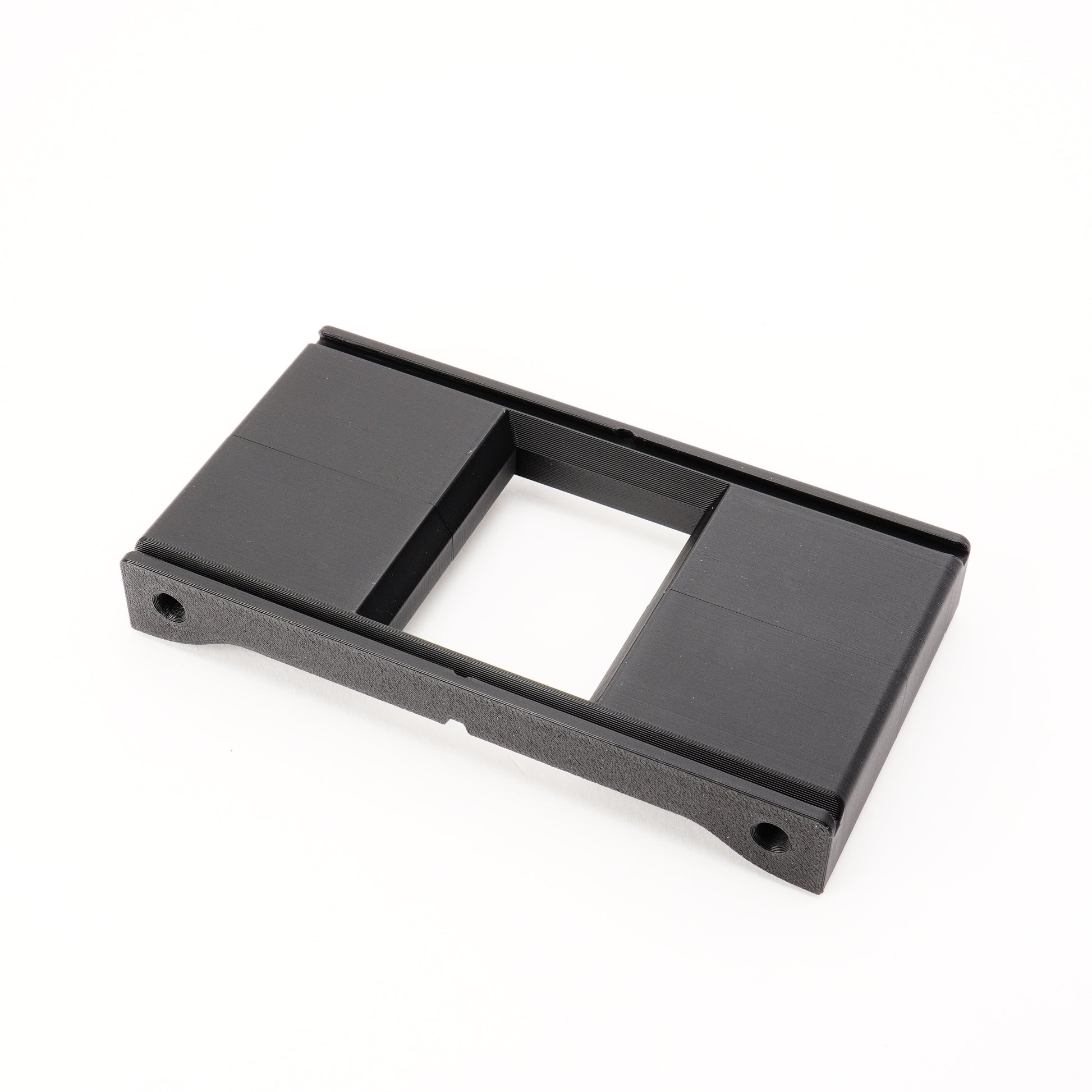

• Exposure window: 56×42mm (6×4.5) / 56×70mm (6×7) / 56×84mm (6×9)
• Material: technical plastic, matte black, non-reflective

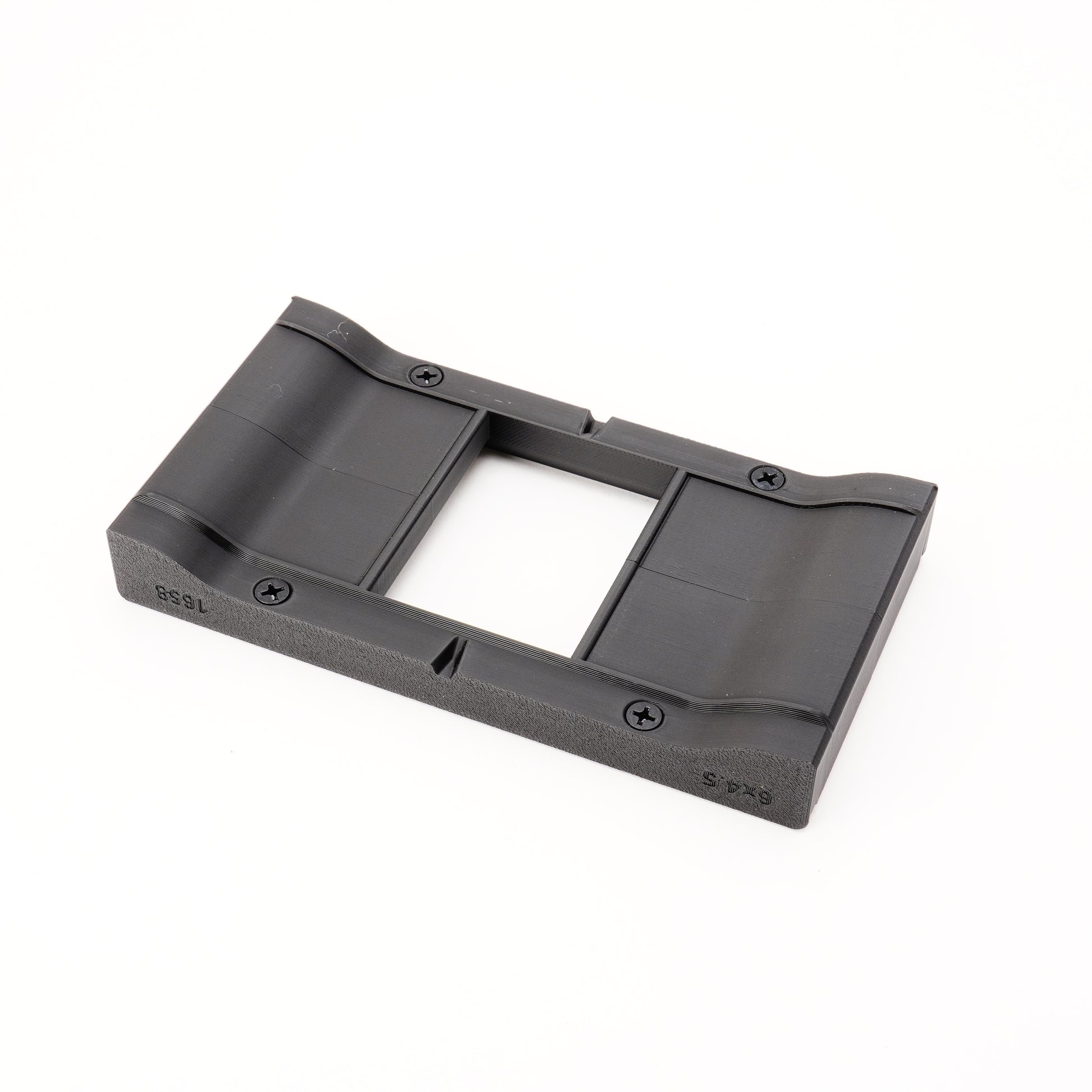

• Mounting: 4× neodymium magnets
• Compatible with: All 120 Base Plates (1654b)
• Not compatible with 35mm, Minox, and 110 Base Plates: This Top Plate requires a 120 Base Plate from the Film Scanner Set 120.
• Made in Würzburg, Germany

Why the window does not span the full film width

All three Top Plates mask the image area, not the full film width. 120 film is 61.5 mm wide, while the largest window (6×9) measures 56 mm. The difference is the area where the holder guides and keeps the strip flat; a wider window would remove this support, causing the film to sag and the center of the image to become unsharp. We therefore do not offer a special plate that exposes the perforations or edge markings. If you need the edges, place the negative between two anti-Newton glass plates and scan it frame by frame.

Description

Additional Top Plates for your Film Scanner Set 120. Each Top Plate masks the exposure window precisely to the selected medium format, optimized for Mamiya 645/RB67/RZ67, Pentax 645/67, Bronica ETR/SQ, Fuji GW690, and other 120 cameras. Magnetic mounting enables switching between all formats in seconds.

Compatibility

• Fits all Ausgeknipst 120 Base Plates
• 120 Lens Hood (1663p) fits over it
• Required: Film Scanner Set 120 (1654b) as the base
