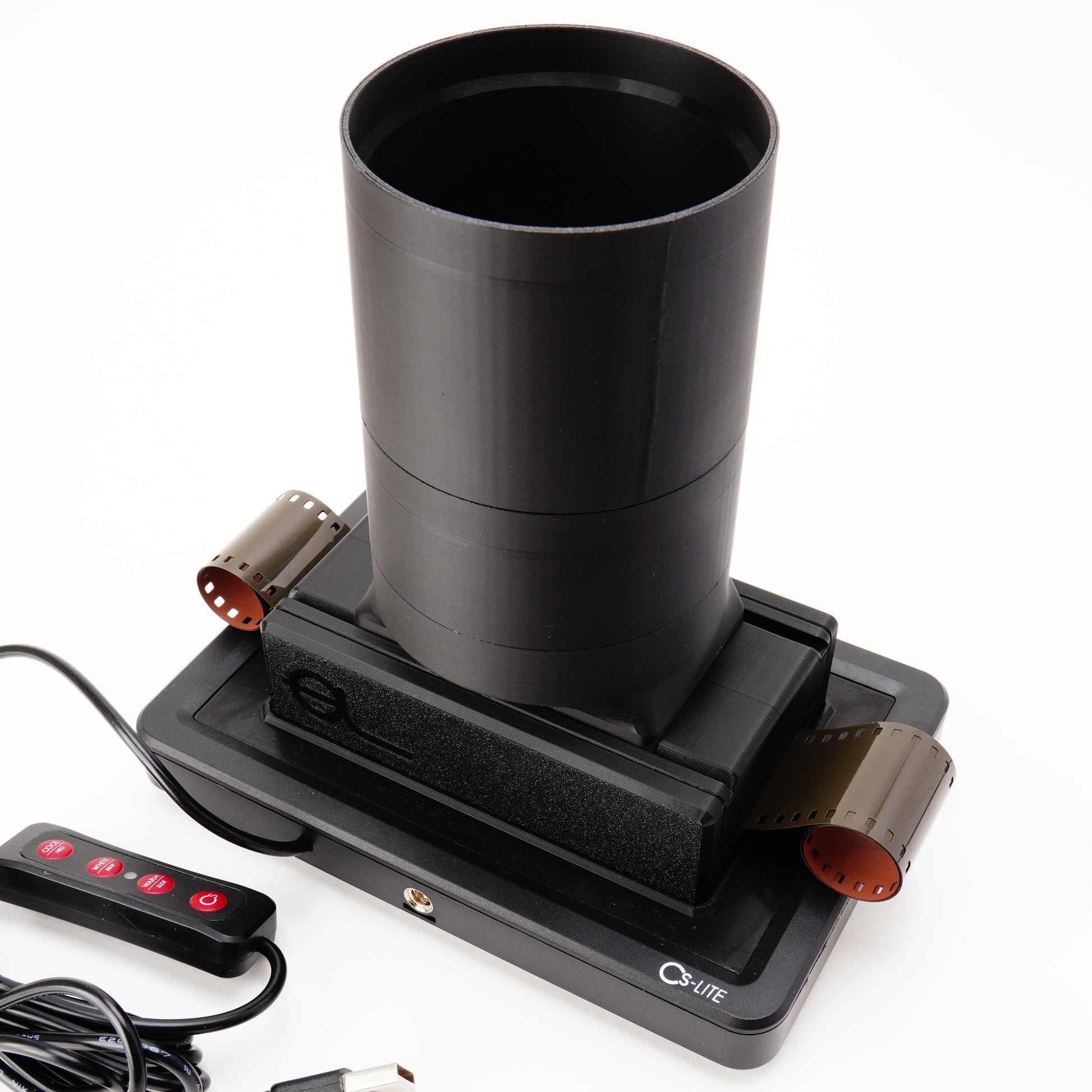

Film Scanner Set for 35mm Sprocket including Hood & CS-Lite

Film Scanner Set for 35mm Sprocket including Hood & CS-Lite

Version
€139,95 EUR
€139,95 EUR
Bundle offer Sold out
🟢 In stock · 25,000+ satisfied customers since 2019

Sustainability promise

All our products are made from PLA – a material derived from sugarcane and corn that is 100% biodegradable.

Learn more here.

Free shipping in Germany

With free shipping to your home in 2-3 days.

Learn more here.

30-day money-back guarantee

You can test any product for 30 days. If you’re not satisfied, we’ll refund the full purchase price including shipping costs. No ifs, ands, or buts.

Learn more here.

Not sure which set you need?

3 questions, personalized recommendation – in under 60 seconds.

To the Film Scanner Finder →
Why a separate base and top for sprocket scans?
This is basically the same scanner as our regular 35mm system (1653b), but specially optimized for users who want to scan the film including the perforation (sprocket holes).
Some systems use just a separate top on a standard base for sprocket scans. However, this means the film is only guided at the edges during normal 35mm scans (without perforation) and does not lie as flat as when guided across the entire perforation width.
To guarantee maximum flatness and sharpness in every scenario, we therefore use this dedicated set with separate base and top for edge scans with visible perforation. The rest of the system is identical to our 1653b.
  • Film curls, edges blurry? Our dual S-curve keeps the film strip flat across the entire width – sharpness to the corners, without glass plates, without Newton rings.
  • Don’t want to fiddle around? Lift the Top Plate, insert the film, snap it in magnetically. Done. Even short film snippets and single frames fit without threading.
  • Stray light ruining your scans? Our 5-layer system with adapter plate (bottom) and lens hood (top) (included in Pro and Full sets) seals perfectly. No side light, no loss of contrast.
  • Worried about scratches? The precision-made film channel guides the film through the image area without contact. Rubber feet (2mm, Shore 70A) prevent slipping and protect your light source from scratches.
  • Half frame, standard or panorama? Standard 24×36mm in the Basic – and expandable with magnetic Top Plates to Half Frame (18×24mm), Panorama X-Pan (24×82mm) and more.

Scope of delivery:

Basic    Pro    Full

Basic Set:

# Component SKU
1 35mm Base Plate (with rubber feet, dual S-curve) 1655p
2 Standard Top Plate 24×36mm (magnetic) 1653b

Pro Set:

# Component SKU
1 CineStill CS-LITE Light Source 1725v
2 CSL Adapter Plate 35 1665p
3 35mm Base Plate (with rubber feet, dual S-curve) 1655p
4 Standard Top Plate 24×36mm (magnetic) 1653b
5 Lens hood 35 + spacer 1662p

Full Set:

# Component SKU
1 Copy Stand MK2 (60cm) 1602b
2 CineStill CS-LITE Light Source 1725v
3 CSL Adapter Plate 35 1665p
4 35mm Base Plate (with rubber feet, dual S-curve) 1655p
5 Standard Top Plate 24×36mm (magnetic) 1653b
6 Lens hood 35 + spacer 1662p

Interactive product range diagram

All components in layered structure – clickable with direct shop links.

Open diagram →

Technical specifications:

  • Material: Technical plastic (PLA+), matte black, non-reflective
  • Film channel: 35mm width
  • Exposure window: 24 × 36mm (standard Top Plate) – variable depending on Top Plate (18×24mm Half Frame, 24×82mm Panorama)
  • Base Plate dimensions: 73,2 × 120mm
  • Height (Base + Top): 32mm (34mm incl. rubber feet)
  • Rubber feet: 2mm height, Shore 70A, non-slip, scratch-resistant
  • Attachment: 4× neodymium magnets (Top Plate magnetically fixed)
  • Weight Base + Top: approx. 85g
  • Made in Würzburg, Germany

Description:

The Ausgeknipst Film Scanner Set 35mm is a modular 5-layer system for digitizing 35mm small format negatives with a DSLR or mirrorless camera. The Carrier Base Plate guides the film through a precision-milled channel with a dual S-curve—for even film flatness without glass plates. The magnetic Top Plate can be removed with one hand: insert film, snap in place, scan. Short film strips and single frames fit without threading. Integrated rubber feet (2mm, Shore 70A) ensure a secure stand on any light source without slipping or scratching.

The system grows with your workflow: from the basic entry with a Top Plate to the Pro set with CineStill CS-LITE light source, adapter plate, and lens hood, up to the complete scanning station with Copy Stand MK2. Additional Top Plates for Half Frame and Panorama X-Pan are available separately. This makes the system future-proof – no matter which film formats your analog journey may take you to.

Compatibility:

Film:

  • All 35mm small format negatives (color and black & white)
  • Film strips and single frames

Light sources (universally compatible):

  • CineStill CS-LITE / CS-LITE+ (SpectraColor) – included in Pro/Full Set
  • Negative Supply Light Source (Basic/MK1/MK2/Pro)
  • Kaiser Slimlite Plano
  • Raleno LED panel (e.g. PLV-S116)
  • Jack Scanlight
  • & Every illuminated area ≥ 73.2 × 120mm (= base area of the 35mm Base Plate; smaller sizes possible but then the plate extends beyond the light)

Accessories (Ausgeknipst Ecosystem):

  • Copy Stand MK2 (1602b) – included in Full Set
  • Expandable with: Half Frame Top (1656b), Panorama X-Pan Top (1657b)
  • Lens hood 35 with spacers (1662p) – included in Pro/Full Set
  • CSL Adapter 35 for CineStill Lite (1665p) – included in Pro/Full Set
